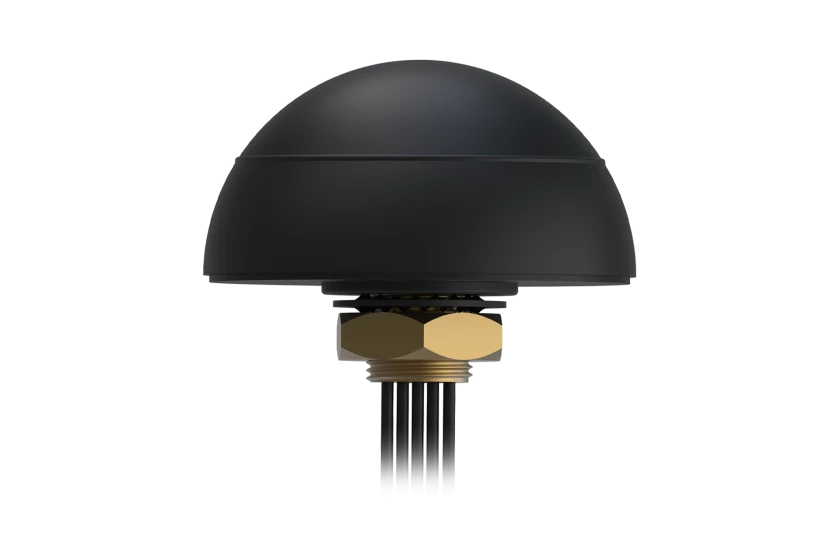

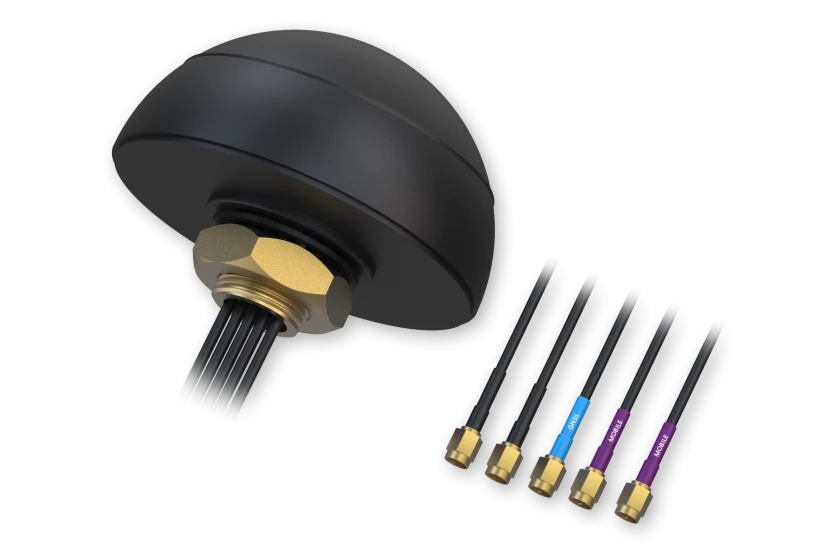

Combo MIMO Mobile/GNSS/WI-FI
Dach SMA Antenne

Mounting method Screw

Radome ingress protection rating IP65 (exclude cable outlet)

Radome material ABS

Housing dimensions Ø 110 x 55 mm

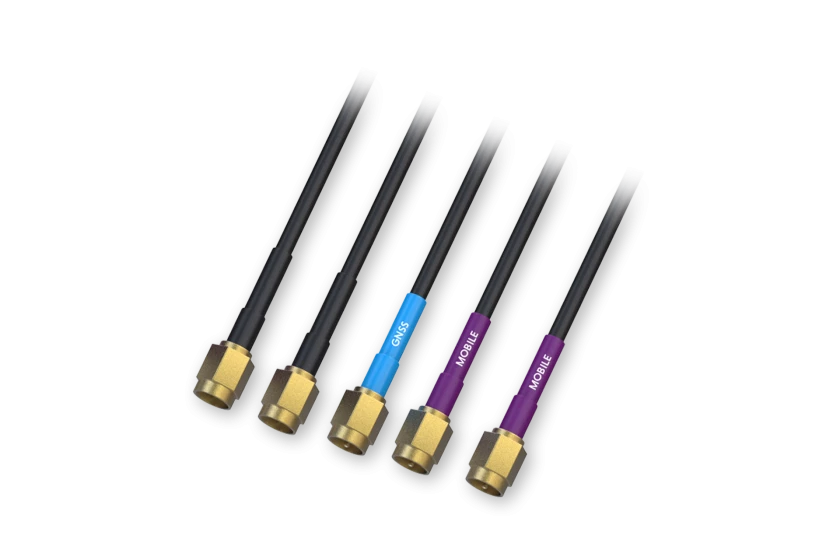

Cable 5x RG174, 3000 mm

Operating temperature – 40 ~ +85 °C

Weight 535 ± 10 g

UV resistance ✓

RoHS Compliant ✓

Frequency range 1575.42 – 1610 MHz

Polarization RHCP

LNA gain 28 ± 2 dB

LNA noise figure ≤1.5 dB

V.S.W.R

Impedance 50 Ω

Supply voltage 3 – 5 VDC

Current consumption < 15 mA

Connector type and count SMA Male

Frequency range 698 – 960, 1710 – 2690 MHz

Polarization Linear

Gain 3.0 dBi

V.S.W.R < 3.0

Impedance 50 Ω

Connector type and count 2x SMA Male

Frequency range 2400 – 2483.5, 4900 – 5825 MHz

Polarization  Linear

Gain 2.0 dBi

V.S.W.R < 2.5

Impedance 50 Ω

Connector type and count 2x RP-SMA Male
