Wieson: Next generation DisplayPort connector for 80Gbps high-speed data Rate application.

elmacon wieson product news next generation display port

DisplayPort™ (DP) standard specifies an open digital communications interface for use in both internal connections, such as interfaces within a PC or monitor, and external display connections. Suitable external display connections include interfaces between a PC and monitor or projector, between a PC and TV, or between a device such as a DVD player and TV display.

DisplayPort™ (DP) is an industry standard to accommodate the growing broad adoption of digital display technology within the PC and CE industries. It consolidates internal and external connection methods to reduce device complexity, supports necessary features for key cross industry applications, and provides performance scalability to enable the next generation of displays featuring higher color depths, refresh rates, and display resolutions.

The specification is divided into three categories that reflect the ultra high bit rates 10 (10Gbps/lane), ultra high bit rates 13.5 (13.5Gbps/lane), ultra high bit rates 20 (20Gbps/lane).

DP Main-Link System Parameters

Date Rate SymbolParameterNomUnits
System Parameters
f20Ultra High Bit 2020Gpbs
f13.5Ultra High Bit 13.513.5Gpbs
f10Ultra High Bit 1010Gpbs
Table. 1. DP Main-Link System Parameters

Mated Connectors Specification

Mated ConnectorRequirementComments

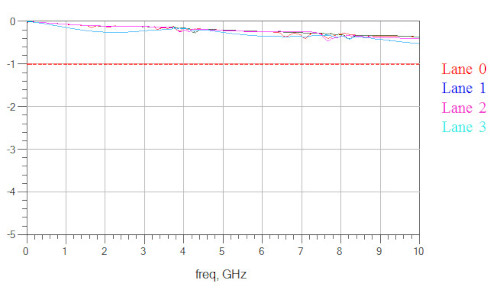

Insertion Loss<1.0 dB0~10GHz

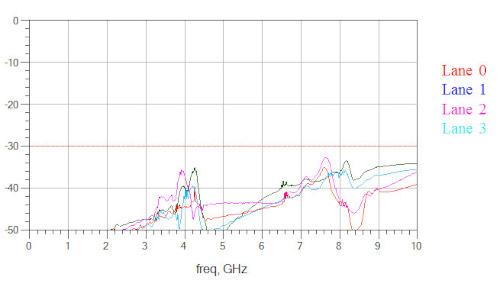

PS-FEXT<-30 dB0~10GHz

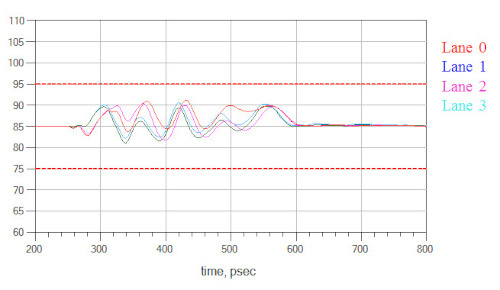

TDR85 ± 10 ΩRise Time (20%-80%)=25ps
Table. 2. Mated Connectors Electrical Performance

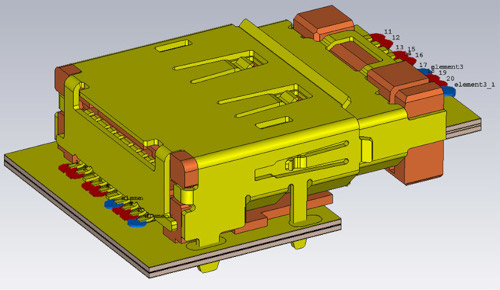

Mated Connectors Simulation Model
